Fraud Detection Techniques Lab

Two real-dataset approaches to credit card fraud, from the same lab: a supervised model-iteration benchmark, and an unsupervised-vs-supervised comparison that quantifies exactly what confirmed fraud labels are worth.

① Catching Credit Card Fraud (2023 dataset, supervised iteration) · ② Autoencoder vs. Supervised XGBoost (ULB dataset, label-value quantified)

① Catching Credit Card Fraud

Fraud classification on 568,629 real 2023 credit card transactions — iterating from a Logistic Regression + SMOTE baseline to CatBoost/XGBoost to a PyTorch MLP trained with Focal Loss, validated for train/test distributional health, and calibrated by a business cost matrix instead of the default 0.5 threshold.

Source on GitHub · part of the Fraud Detection Techniques Lab

Dataset

Credit Card Fraud Detection Dataset 2023 (Kaggle, uploaded by Nelgiriyewithana) — 568,629 real transactions, PCA-anonymized components V1–V28 (same anonymization scheme as the classic ULB dataset) plus Amount. License: see the dataset page on Kaggle. Downloaded for this run on 2026-10-01.

This means there are no raw entity columns (card/device/IP) for dynamic per-entity aggregation, unlike IEEE-CIS's original multi-table schema — disclosed explicitly rather than pretended away. Adversarial validation (train-vs-test classifier) confirms a healthy split: AUC 0.5005, statistically indistinguishable.

Techniques

Class imbalance: SMOTE oversampling baseline, plus class-balanced CatBoost/XGBoost.
Model iteration: Logistic Regression → CatBoost → XGBoost → PyTorch MLP with Focal Loss (ReLU/GELU/Swish compared).
Hyperparameter tuning: Optuna, 30-trial search over XGBoost, optimizing PR-AUC on held-out test.
Decision policy: cost-matrix threshold calibration instead of the default 0.5 cutoff.
Deployment: CatBoost exported to ONNX; XGBoost hand-reimplemented in pure Rust.
Cross-language verification: an independent R GLM cross-checks the Python logistic baseline.

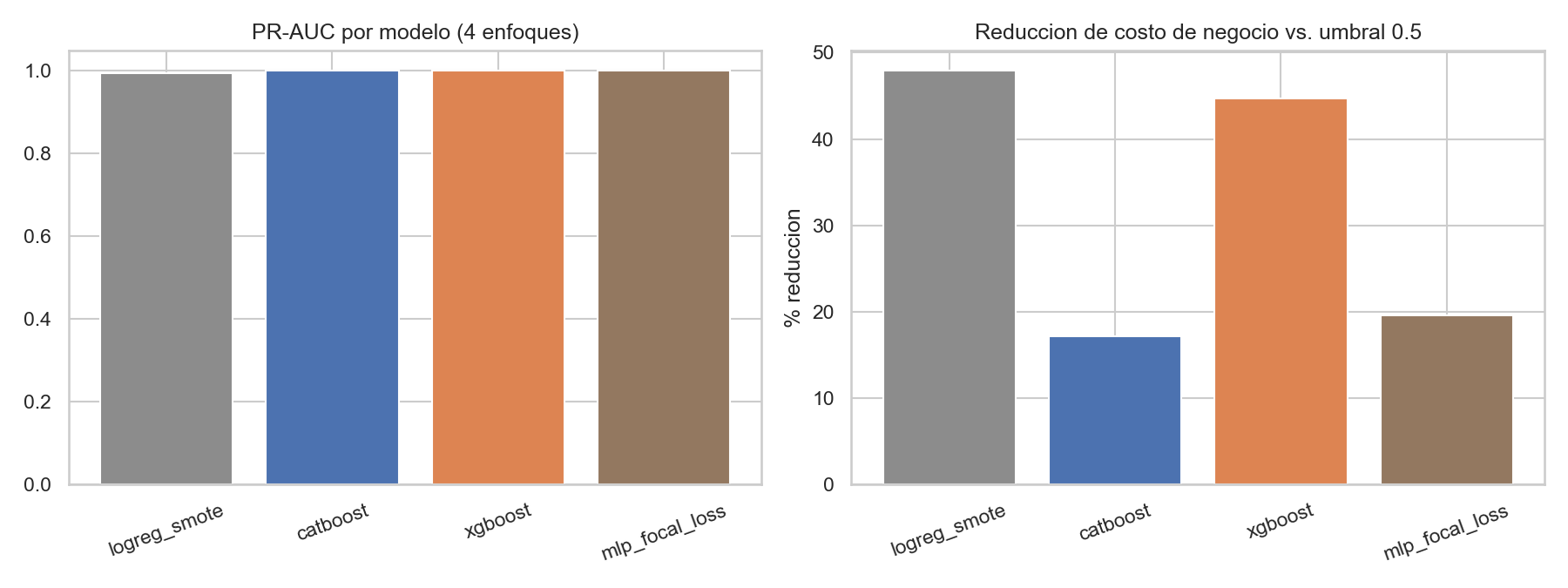

Results — real run, 20% held-out test set

Model	ROC-AUC	PR-AUC	Cost @ 0.5	Cost @ best threshold	Reduction
LogReg + SMOTE	0.9942	0.9950	257,950	134,440	47.9%
CatBoost	1.0000	0.9999	930	770	17.2%
XGBoost	1.0000	1.0000	470	260	44.7%
XGBoost, Optuna-tuned (30 trials)	—	0.999988	—	180	—
MLP + Focal Loss	1.0000	1.0000	1,430	1,150	19.6%

Business cost = 100 units per undetected fraud (false negative) + 10 units per legitimate transaction wrongly flagged (false positive).

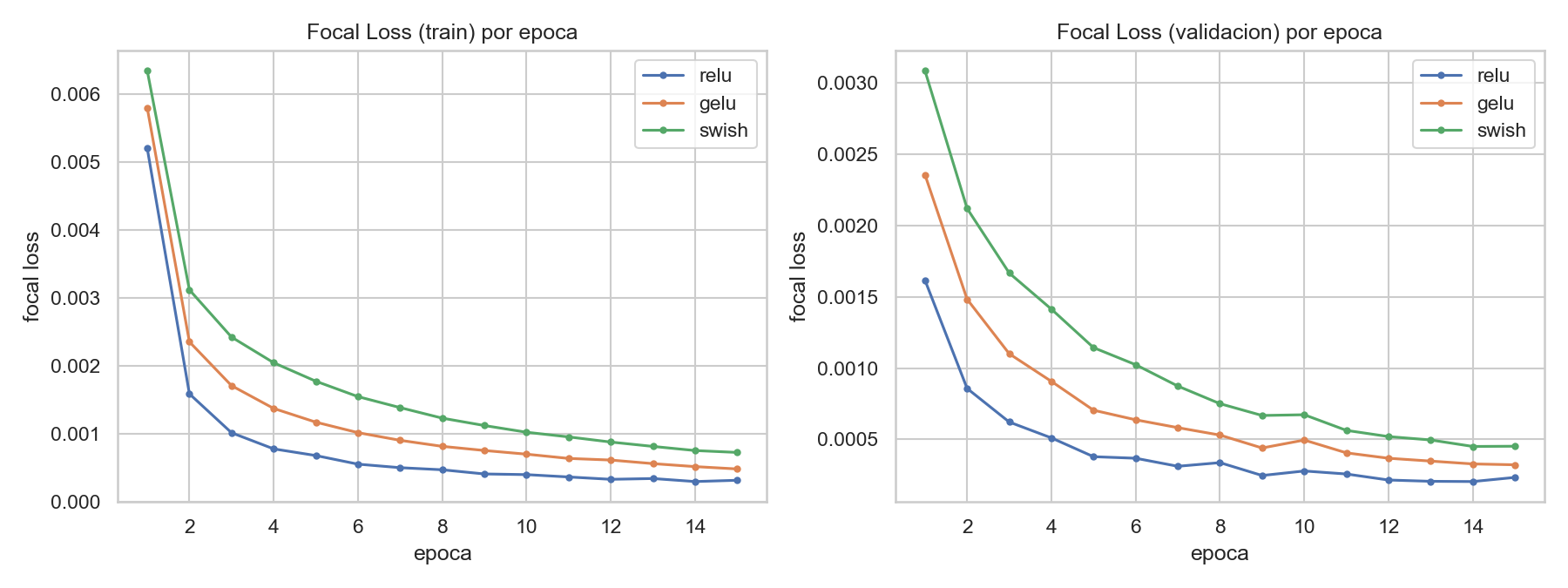

MLP validation loss per epoch by activation

Honest caveat

These near-perfect scores reflect this specific dataset's characteristics — artificially class-balanced (50/50, real-world card fraud is closer to 0.1–1%) and apparently close to linearly separable in its PCA space — not a claim that production fraud detection achieves ROC-AUC 1.0. This is a well-documented property of this exact Kaggle dataset, disclosed here rather than presented as a realistic production benchmark.

Reproduce it

git clone https://github.com/Rxyxs/fraud-detection-techniques-lab.git
cd fraud-detection-techniques-lab/01-credit-card-fraud-multilang
python -m venv venv && venv\Scripts\activate
pip install -r requirements.txt
kaggle datasets download -d nelgiriyewithana/credit-card-fraud-detection-dataset-2023 -p data/raw --unzip
pytest -q

② Deep Autoencoder vs. Supervised XGBoost

A quantified answer to a question every fraud/AML team eventually asks: "how much are we losing by not having confirmed labels yet?" Three unsupervised PyTorch architectures (Autoencoder, VAE, Deep SVDD) trained on only legitimate transactions — the realistic day-one scenario — benchmarked against a supervised XGBoost trained once fraud confirmations exist, on the real ULB/Worldline dataset (284,807 transactions, 492 confirmed frauds). A cost-sensitive threshold optimizer turns each model's raw score into an actual alerting decision.

Source on GitHub · part of the Fraud Detection Techniques Lab

Dataset

Credit Card Fraud Detection (Kaggle, ULB Machine Learning Group / Pozzolo et al., mirrored via OpenML dataset 1597) — 284,807 European cardholder transactions, September 2013, 492 confirmed frauds (0.172%). PCA components V1–V28; Time/Amount untransformed. Downloaded for this run on 2026-10-01 (exact row count verified: 284,807).

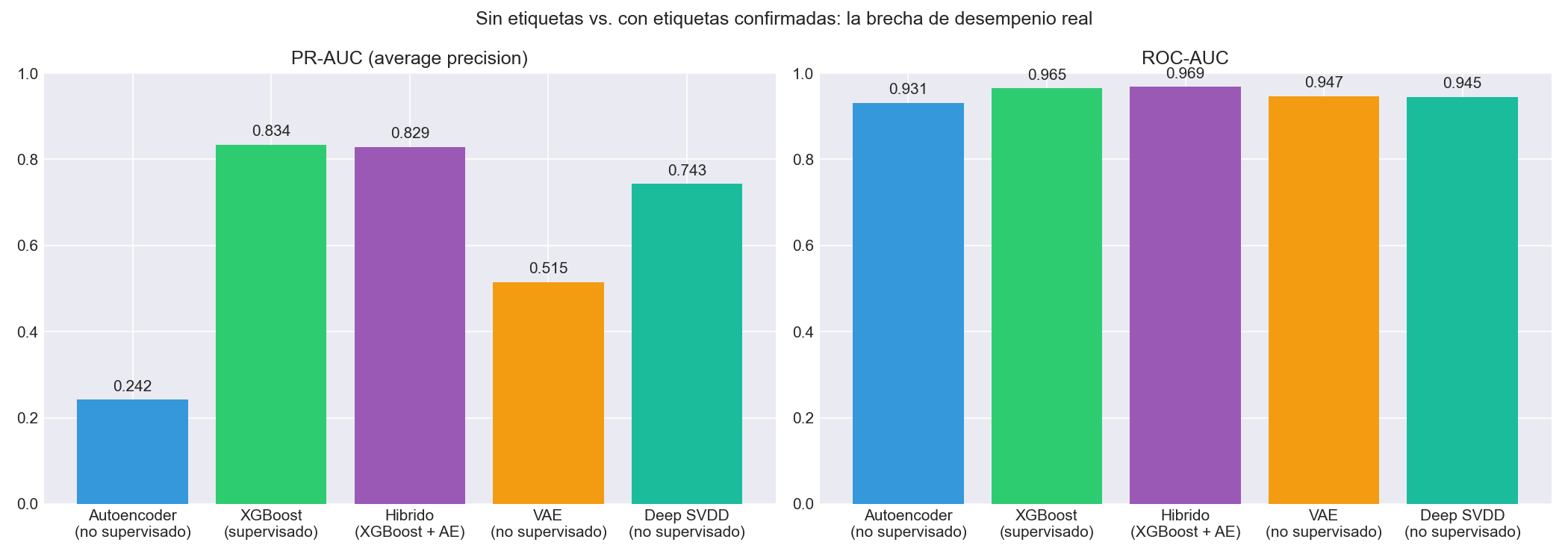

Headline comparison — real held-out test set

Model	ROC-AUC	PR-AUC
Autoencoder (unsupervised, zero labels used)	0.931	0.242
XGBoost (supervised, real labels)	0.965	0.834
Hybrid (XGBoost + autoencoder feature)	0.969	0.829

ROC-AUC alone suggests the autoencoder is "almost as good" (0.931 vs. 0.965). PR-AUC tells the real story: going from zero labels to real confirmed labels is a 3.4x jump in average precision (0.242 → 0.834).

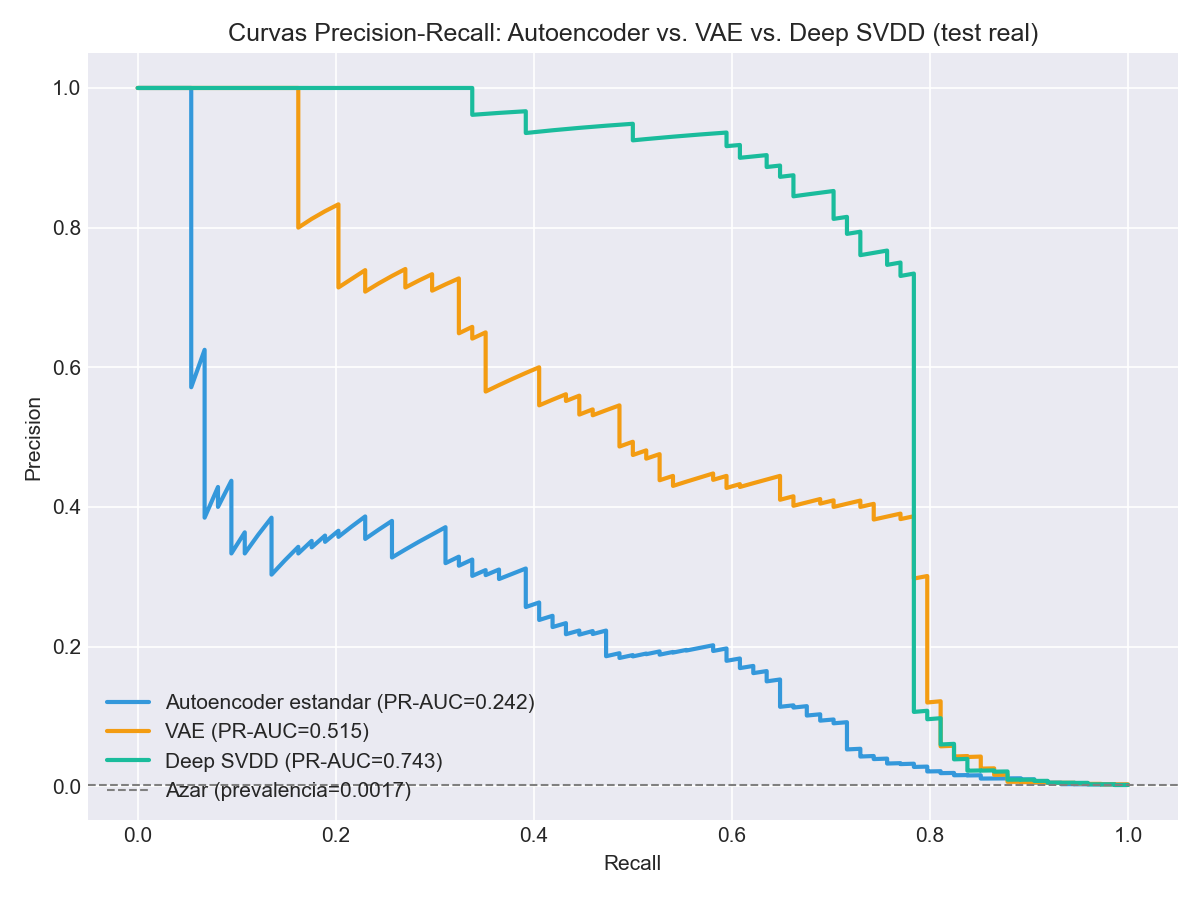

AE vs. VAE vs. Deep SVDD — same protocol, different objective

Model	ROC-AUC	PR-AUC
Autoencoder (standard)	0.931	0.242
VAE	0.947	0.515
Deep SVDD	0.946	0.743

Deep SVDD's PR-AUC (0.743) is roughly 3x the standard autoencoder's (0.242) and approaches XGBoost's supervised 0.834 — without ever seeing a fraud label. Dropping reconstruction entirely and concentrating normal transactions into a hypersphere separates this dataset's fraud pattern substantially better than learning to reconstruct it.

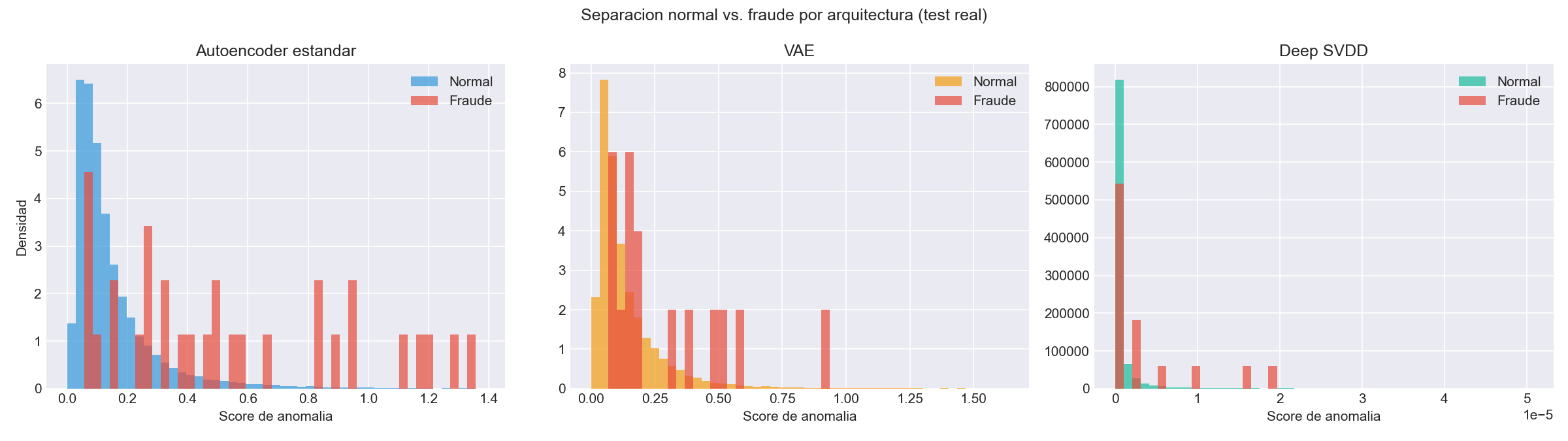

AE vs VAE vs Deep SVDD score distributions

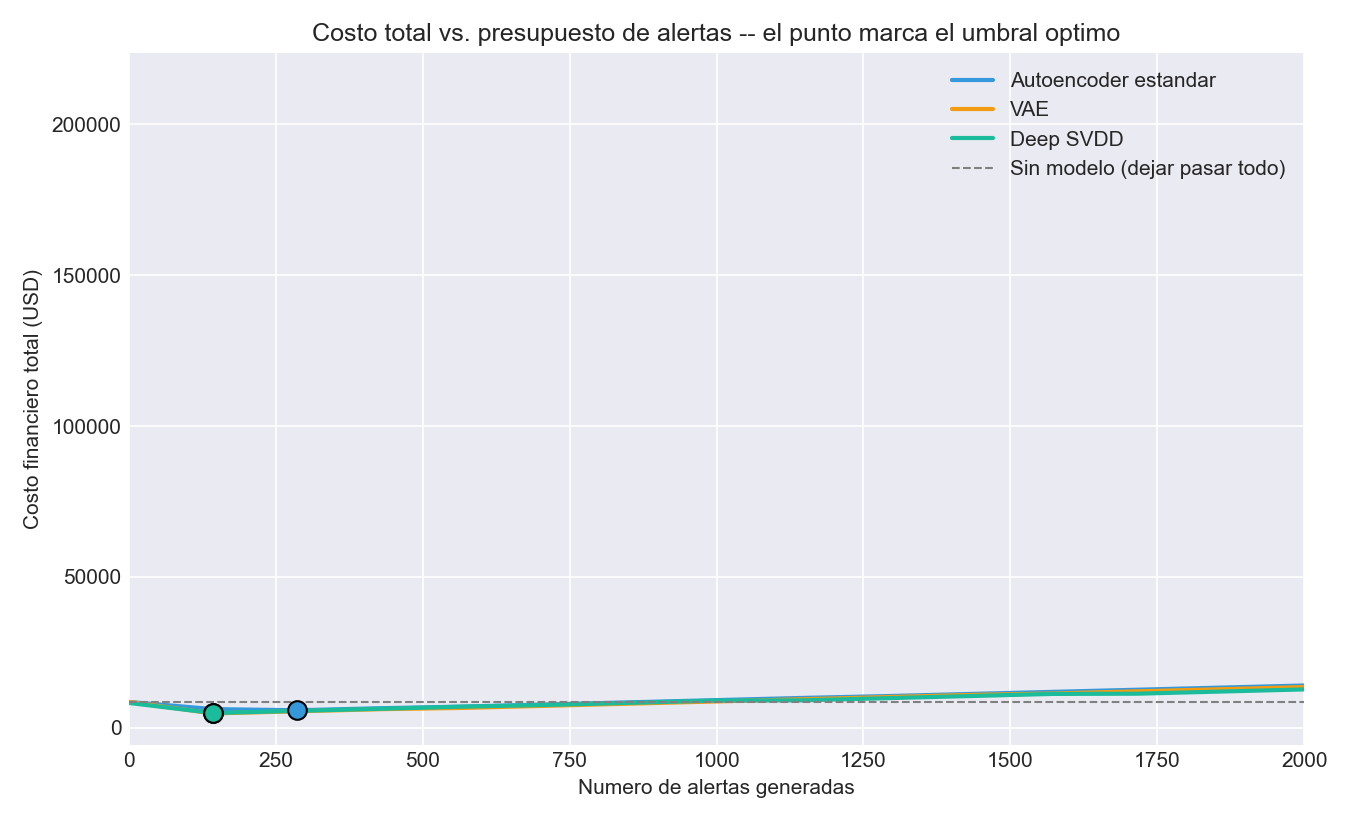

Cost-sensitive threshold optimization — real financial impact

Model	Alerts	TP/FP/FN	Total cost	Reduction
Autoencoder	286	47/239/27	$5,731.99	32.4%
VAE	143	55/88/19	$4,683.26	44.8%
Deep SVDD	143	58/85/16	$4,808.88	43.3%
XGBoost	143	63/80/11	$4,636.08	45.4%

Cost matrix: fixed $5 per false-positive review; false-negative cost = the real dollar amount of that missed fraud. Baseline (no model): $8,483.36 total fraud on 74 confirmed test-set frauds.

Honest caveat — a negative result, reported as found

Adding the autoencoder's reconstruction error as an extra XGBoost feature moved ROC-AUC up marginally (0.965 → 0.969) but PR-AUC down slightly (0.834 → 0.829) — a wash, not an improvement. XGBoost, given the raw 30 PCA features directly, already extracts whatever signal the autoencoder's single reconstruction-error number summarizes. Reported as a negative result on purpose, rather than quietly dropped because it didn't confirm the hoped-for story.

Reproduce it

git clone https://github.com/Rxyxs/fraud-detection-techniques-lab.git
cd fraud-detection-techniques-lab/04-autoencoder-vs-supervised
python -m venv venv && venv\Scripts\activate
pip install -r requirements.txt
python data/download_dataset.py
pytest -q

Pablo Reyes — github.com/Rxyxs. Code: MIT.
